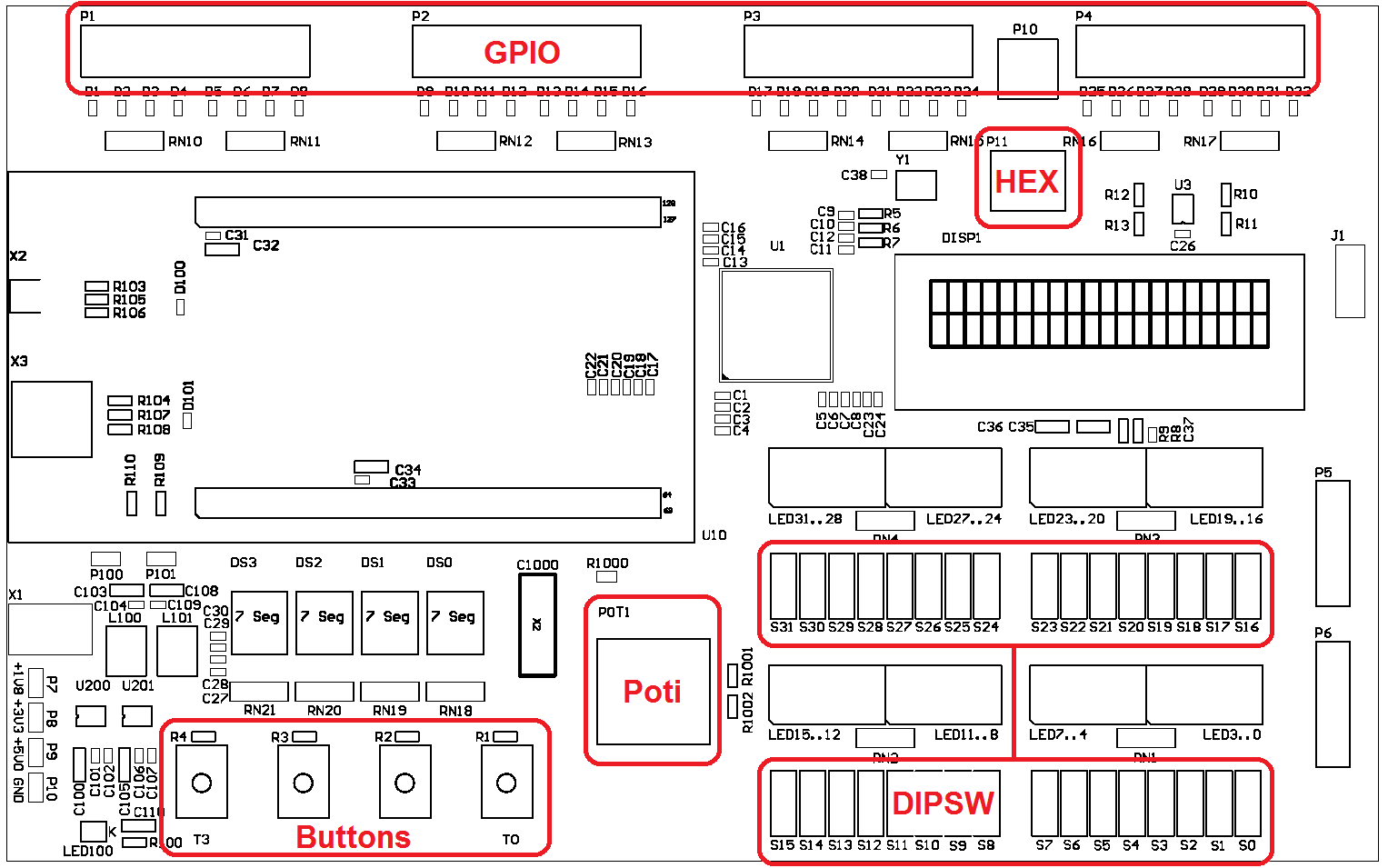

CT Board Input Peripherals

The CT Board offers the following input options:

  • 4x Buttons
  • 1x Potentiometer 0..3,3V
  • 1x HEX Rotary Switch
  • 32x DIP Switches
  • 4x GPIO each 8 output / input pins
